TCA 7

The end of the era of image intensifiers has enabled the transition to more modern technologies such as Flat Panel Detectors and has supported the development of TCA 7, a highly optimized c-arm able to perform a wide range of clinical applications.

Brochure

Datasheet

Safety information

Request Datasheet

Name

E-mail address

11 + 3 =

Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur.

Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

TOUCH-SCREEN CONTROL PANEL

TCA 7 is equipped with an intuitive touch-screen control panel with image preview, that helps the technicians in the management of all operative parameters and visualization of info, warning and error messages.

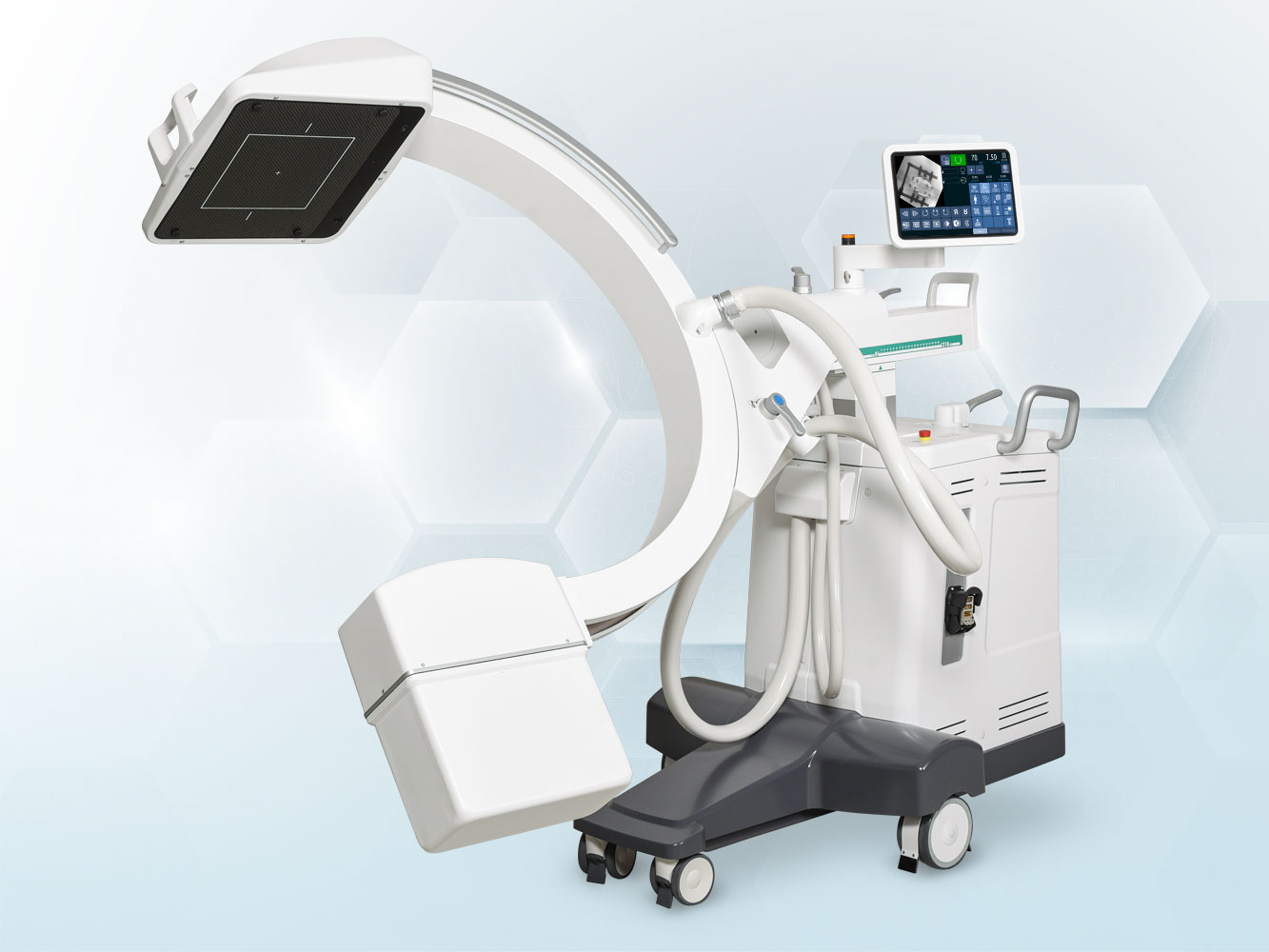

C-ARM MOVEMENTS

To facilitate their recognition by operators, c-arm movements are identified by different colors and by colored graduated scales.

DRIVING HANDLE

The equipment is equipped with a driving handle that allows movement in various directions and the locking of the rear wheels.

MOTORIZED MOVEMENT

The large motorized vertical stroke of the column greatly simplifies the use of the equipment in the operating room.

FLAT PANEL DETECTOR

TCA 7 can be equipped with 21 x 21 or 30 x 30 FPD, with aSi or IGZO technology.

GRID

The device is equipped with a removable anti-scatter grid to reduce the quantity of scattered radiation that reaches the FPD. The grid can be removed for low-dose pediatric applications.

LASER TARGETING DEVICE

TCA 7 can be ordered with laser targeting device on FPD and tube side. The presence of the laser helps with c-arm positioning and reduces the dose provided to the patients.

MONOBLOC

TCA 7 is available in 5 kW and 25 kW power versions. Thanks to ESU system, 25 kW power is reachable without using batteries, with consequent weight and maintenance savings, and the unit can operate on 115 Vac and 230 Vac on a standard 16 A outlet. In addition, the monobloc is liquid-cooled for granting more efficient heat dissipation and the possibility to perform long surgical procedures.

COLLIMATOR

TCA 7 collimator is equipped with long and cross symmetrical shutters, motorized pediatric filters and, eventually, secondary rotating asymmetrical shutters. Virtual collimator is always available for dose reduction purposes.

WHEELS AND CABLE PUSHERS

Twin-wheel casters with high diameter guarantee easy maneuverability, while the short basement allows to get closer to the operating table. All wheels of the mobile stand are provided with cable pushers, to avoid cables squeezing.

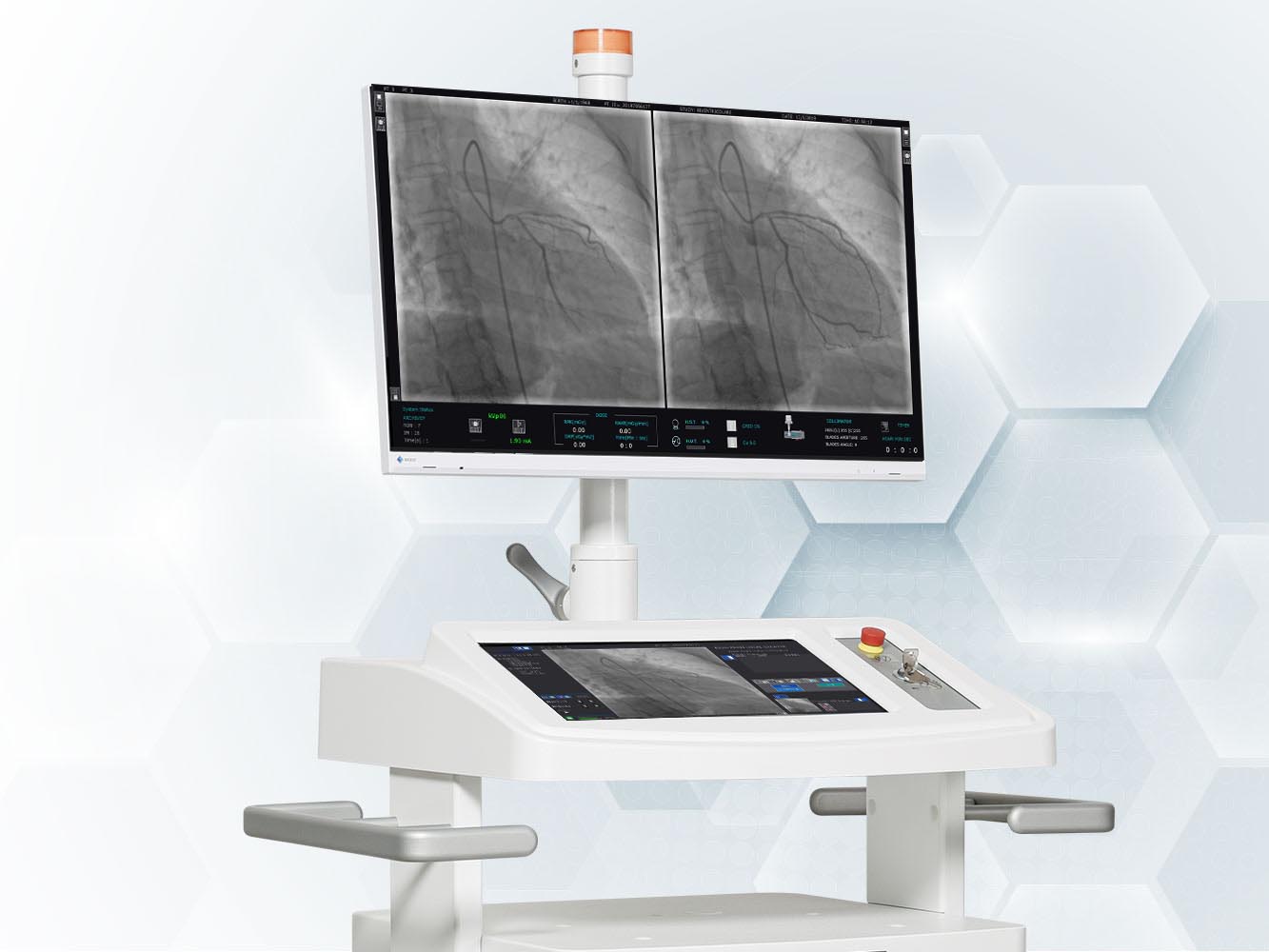

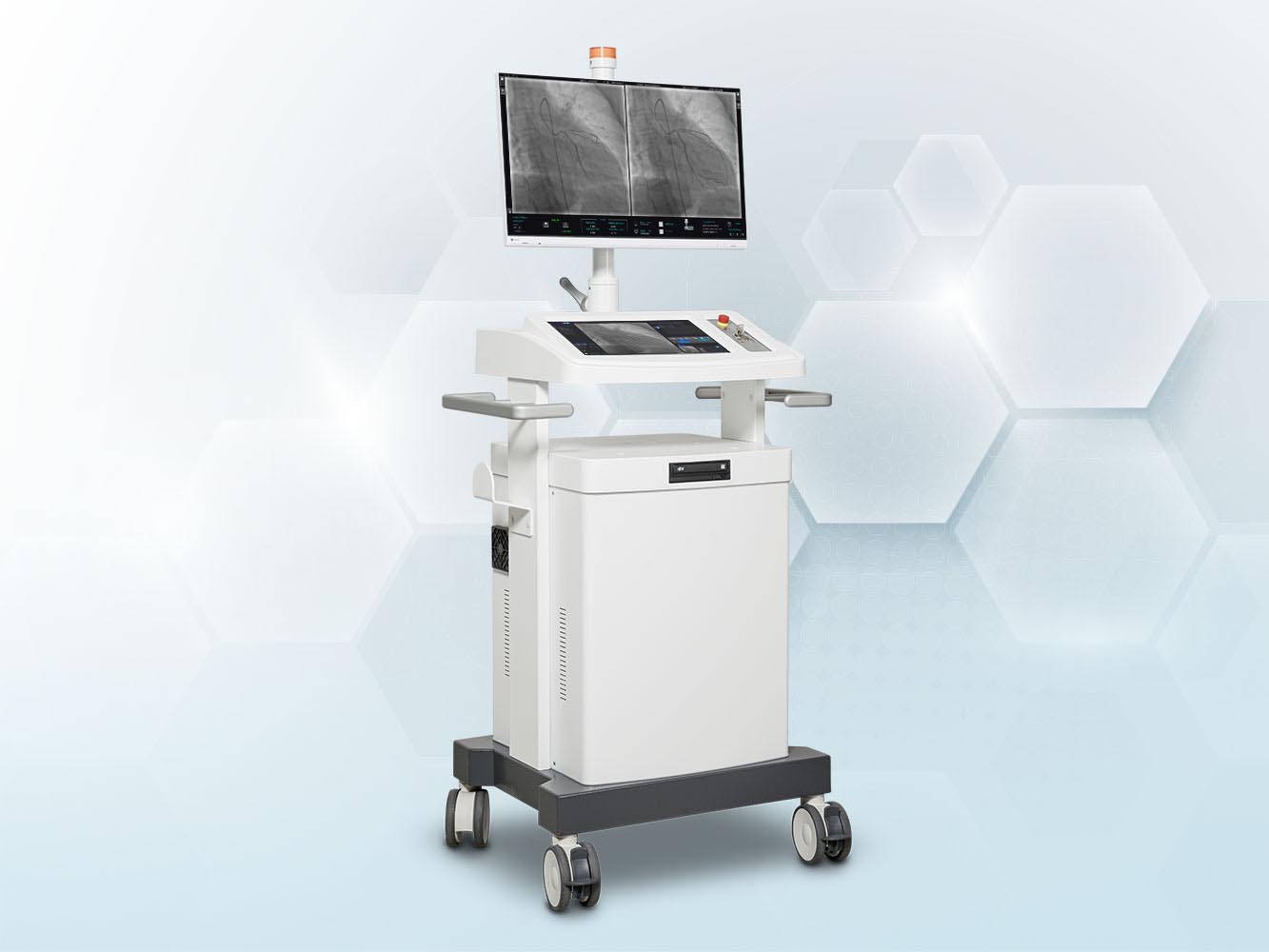

WORK MONITOR

Work monitor, whose size can vary from 27” to 43”, is digitally split for displaying simultaneously live and reference images. The monitor can be oriented as operators prefer, allowing them to stay out of the sterile field.

OPERATOR CONTROL PANEL

15.6” LCD touch-screen monitor can be used for setting operating parameters and managing x-ray images: patient data entry, interface with DICOM network, filter setting, image export, real-time management of memory functions.

TCA 7 main features are enhanced maneuverability and reduced dimensions. The system is intuitive and easy to use. The surface finishes facilitate cleaning and disinfection of the unit.
